Bellozanne STW Phase 1 MCC

Scope of works

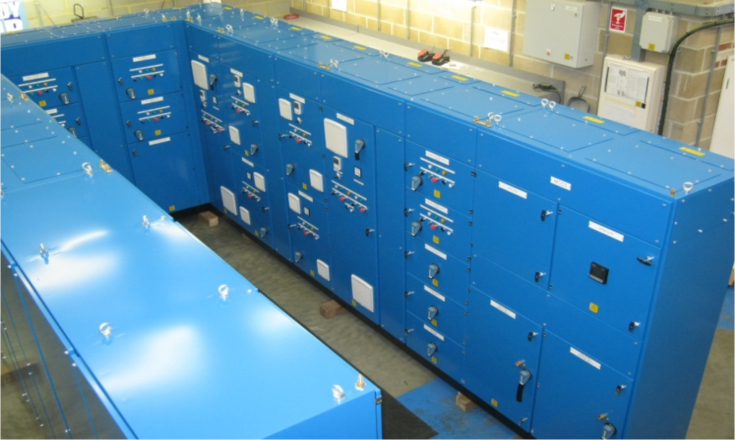

Design and manufacture of a 'U' shaped Form 4 motor control centre.

• Form 4 MCC contained within a custom built enclosure.

The MCC functional units included the following:

• Mains Incomer Sections with Castell interlocking and metering section.
• Variable frequency starters using ABB ACS550 VFD’s.
• DOL starter sections.
• ASD starter sections.
• Common Controls section containing Mitsubishi Q series. PLC and E1151 Pro+ HMI allowing full automatic control of sludge thickening and dewatering process.
• Software development and HMI Graphics.
• Full Factory Acceptance Testing (FAT) prior to delivery.
• The supply of full documentation including Declaration of Conformity Certification confirming adherence to BS EN 61439-2:2011, LV Directive and the EMC Directive.

Client
States Of Jersey
Contract
Bellozanne Sludge Thickening and Dewatering Plant MCC
Specification
Form 4 Type 2 IP54, Castell Interlocked, Dual Incomers 630A, 800A Busbars, Rated 50kA / 1 sec

Please contact Stuart Rice on +44 (0) 2380 665544 or stuart.r.rice@trant.co.uk
